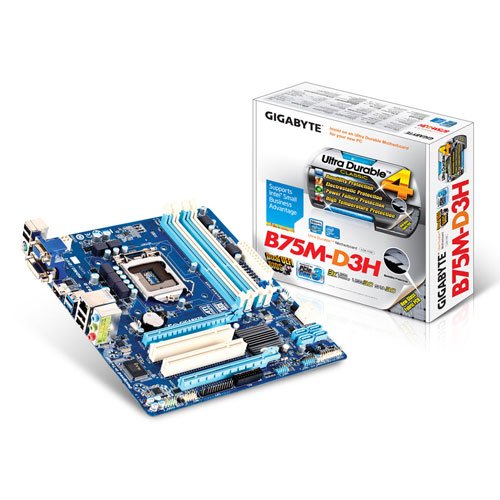

GA-B75M-D3H LGA 1155 Intel B75 SATA 6Gb/s USB 3.0 Micro ATX DDR3 1600

·         CPU: support for Intel Core i7/i5/i3/Pentium/Celeron processors in the LGA1155 package, Chipset: Intel B75 Express Chipset

·         Memory: 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory, support for DDR3 1600/1333/1066 MHz memory modules, support for non-ECC memory modules, support for extreme memory profile (XMP) memory modules

·         Audio: Realtek ALC887 codec, high definition audio, 2/4/5.1/7.1-channel, support for S/PDIF out, LAN: 1 x Realtek GbE LAN chip

·         Storage Interface: 1 x SATA 6Gbps connectors, 5 x SATA 3Gbps connectors

·         USB: up to 8 USB 2.0/1.1 ports, up to 4 USB 3.0/2.0 ports

·         Internal I/O Connectors: 1 x 24-pin ATX main power connector/1 x 4-pin ATX 12V power connector/1 x SATA 6Gbps connector/5 x SATA 3Gbps connectors/1 x CPU fan header/1 x system fan header/1 x front panel header/1 x front panel audio header/1 x S/PDIF out header/1 x USB 3.0/2.0 header/2 x USB 2.0/1.1 headers/1 x serial port header/1 x parallel port/1 x trusted platform module (TPM) header/1 x clear CMOS jumper

·         Back Panel Connectors: 1 x PS/2 keyboard/mouse port/1 x D-Sub port/1 x DVI-D port/1 x HDMI port/2 x USB 3.0/2.0 ports/4 x USB 2.0/1.1 ports/1 x RJ-45 port/3 x audio jacks
